Connection diagram for hash boards and fans

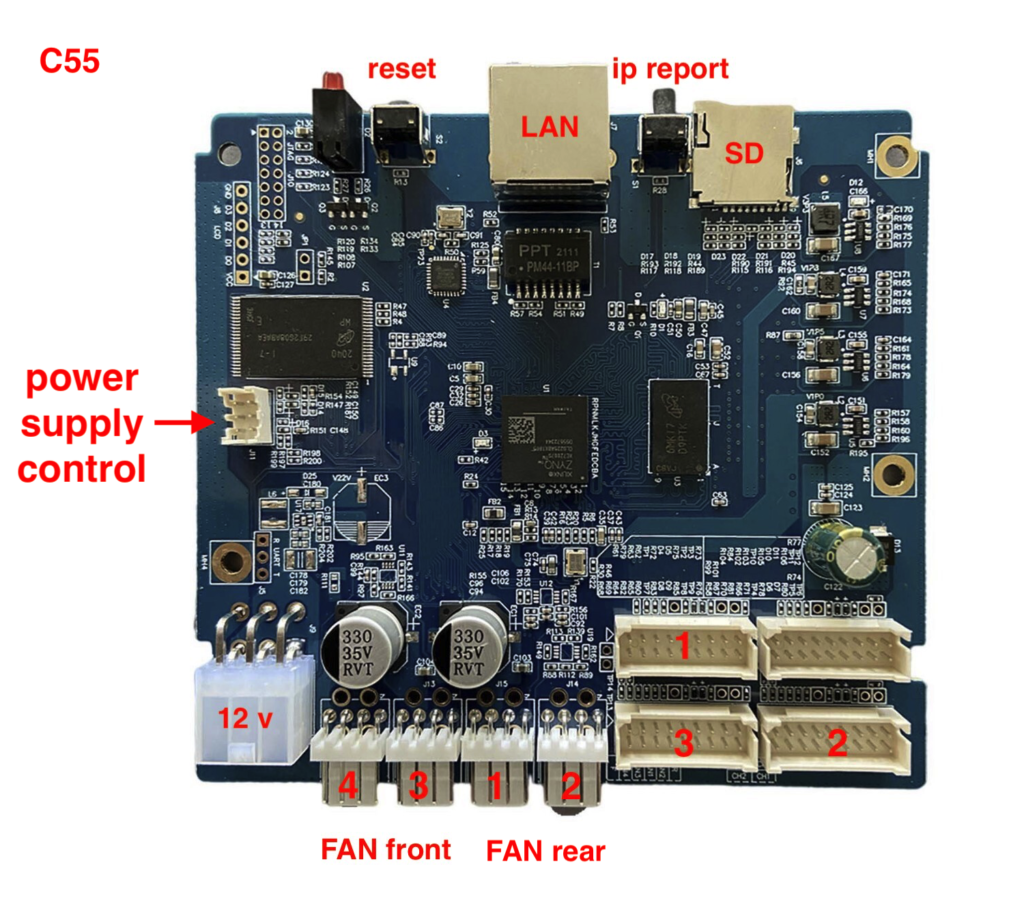

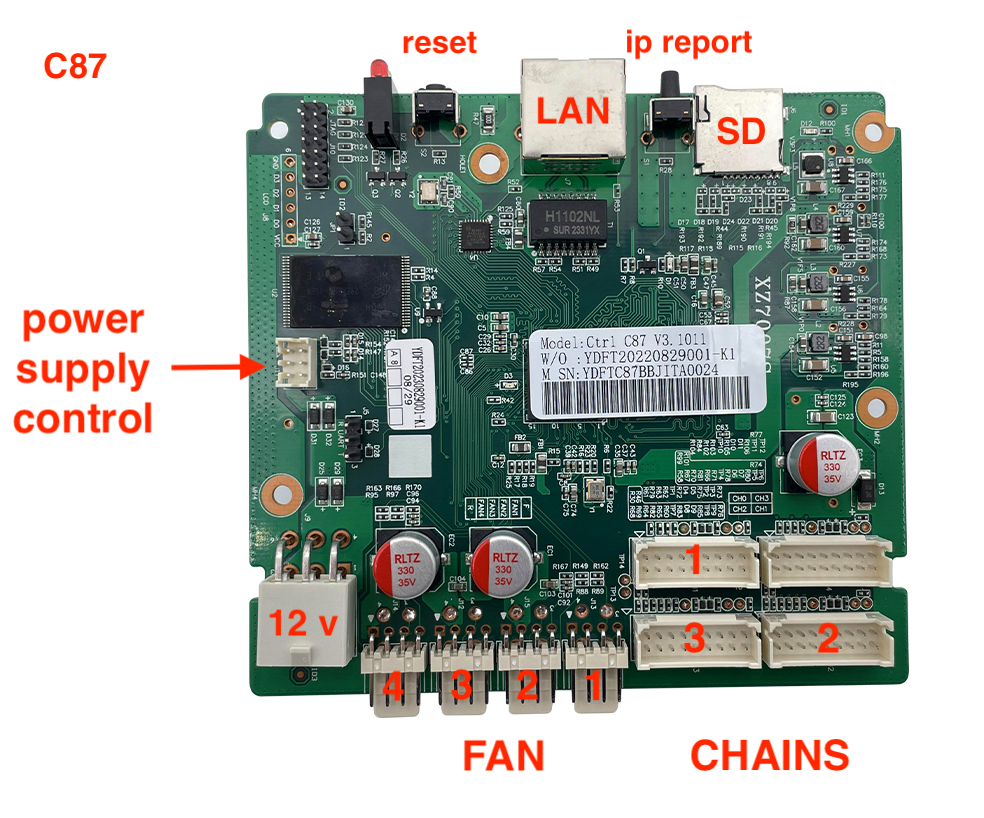

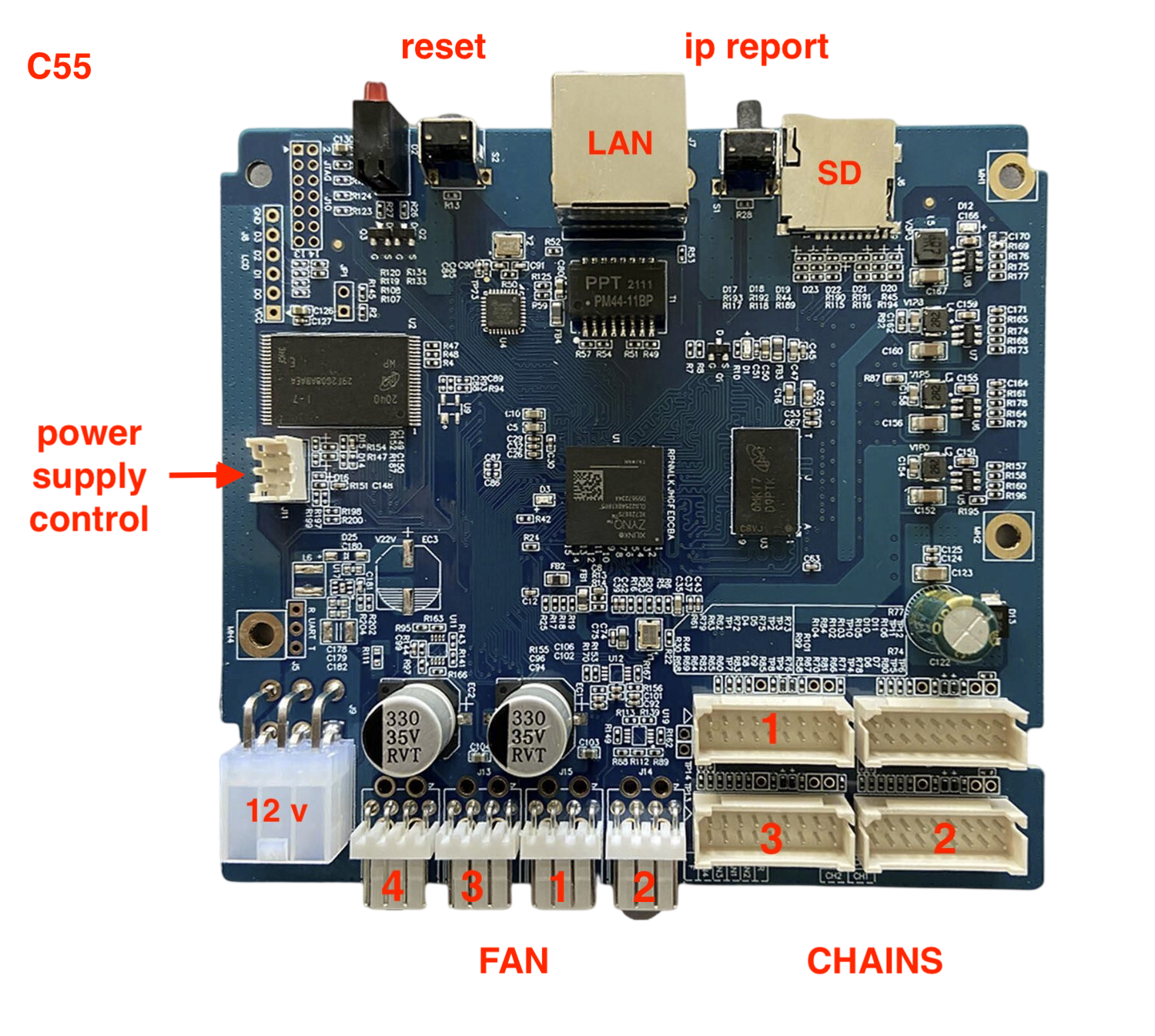

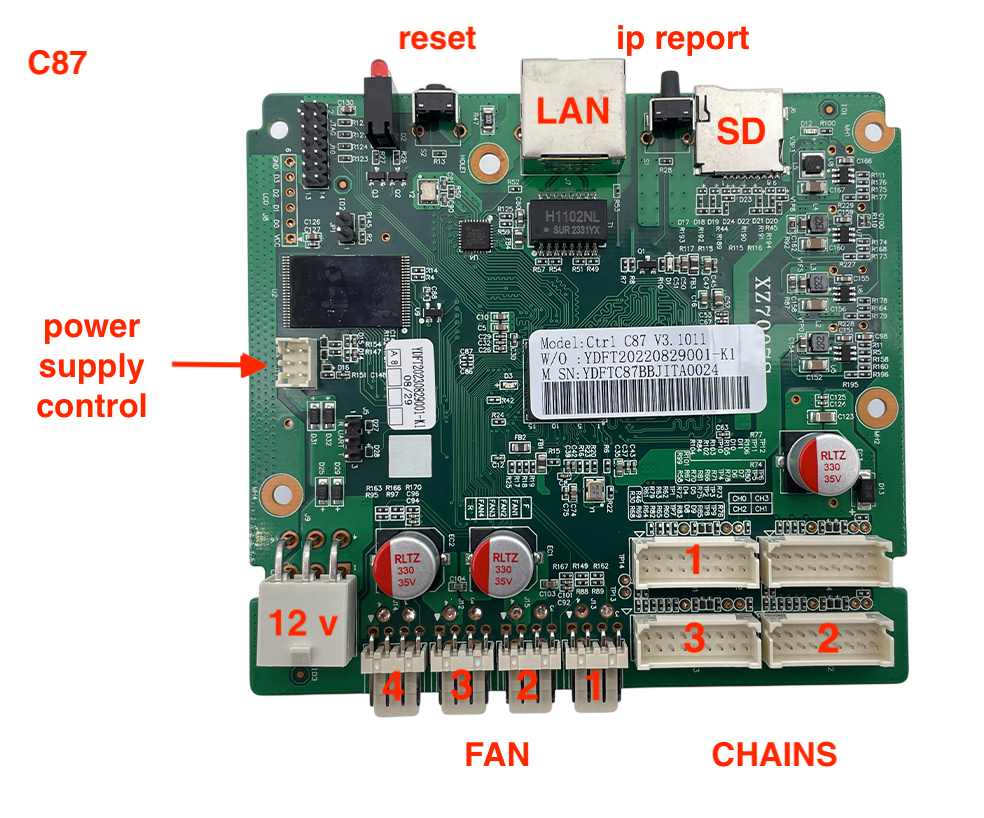

Xilinx 7007 control board (sd slot on the outside)

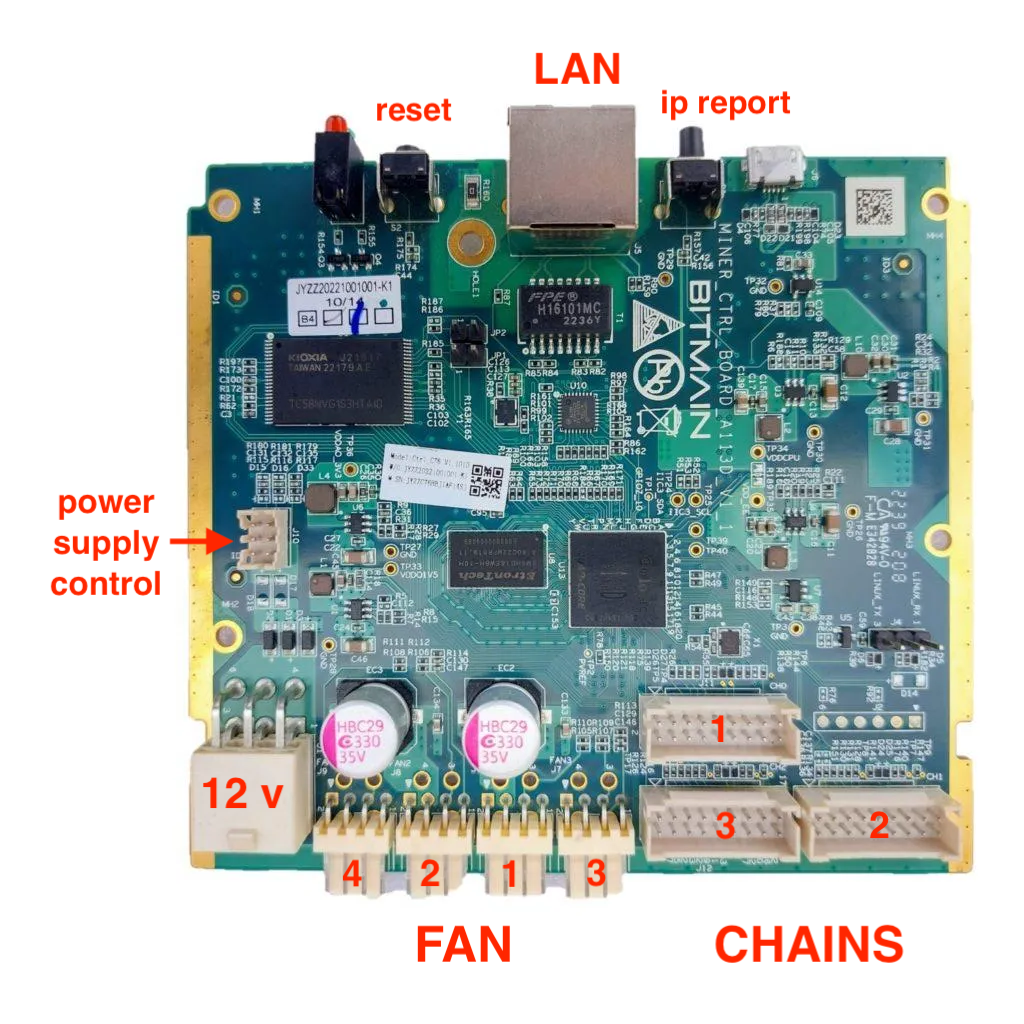

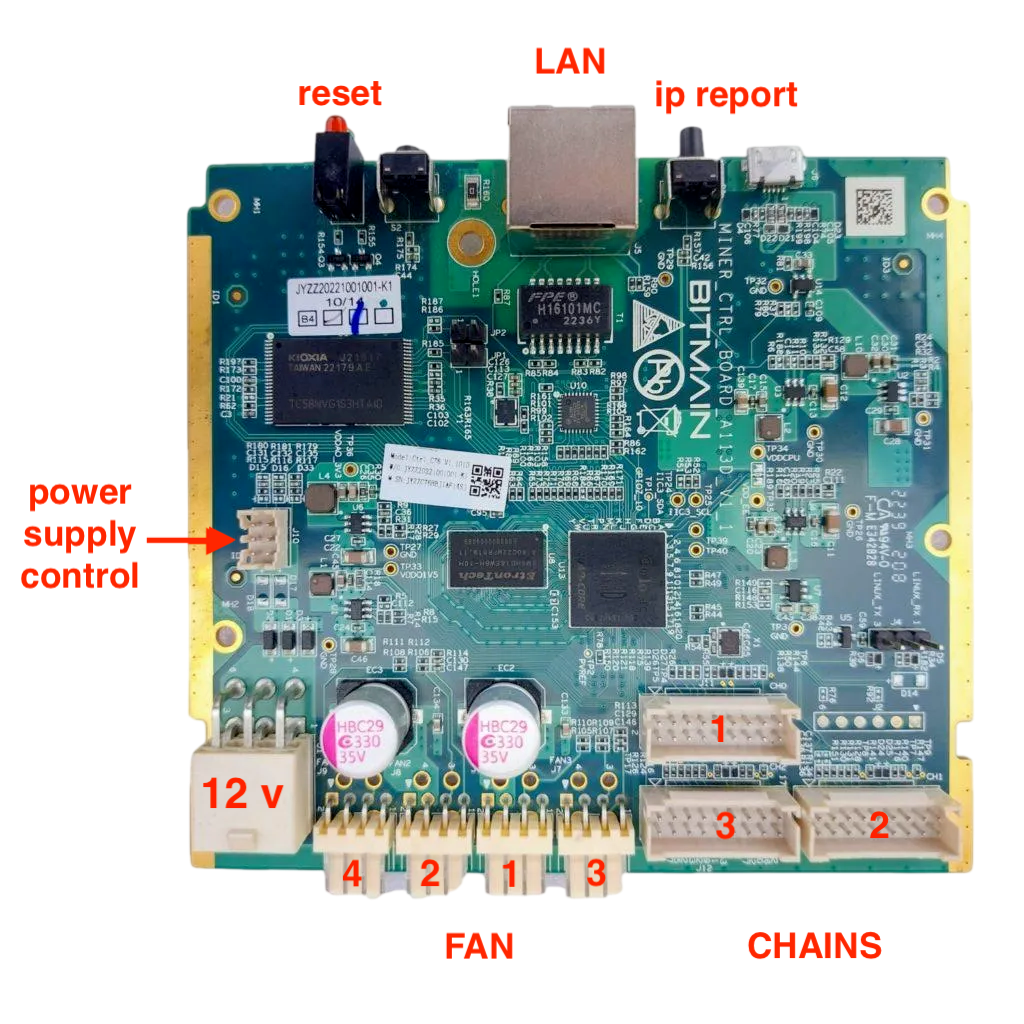

Amlogic A113d control board ( Micro-USB connector on the outside)

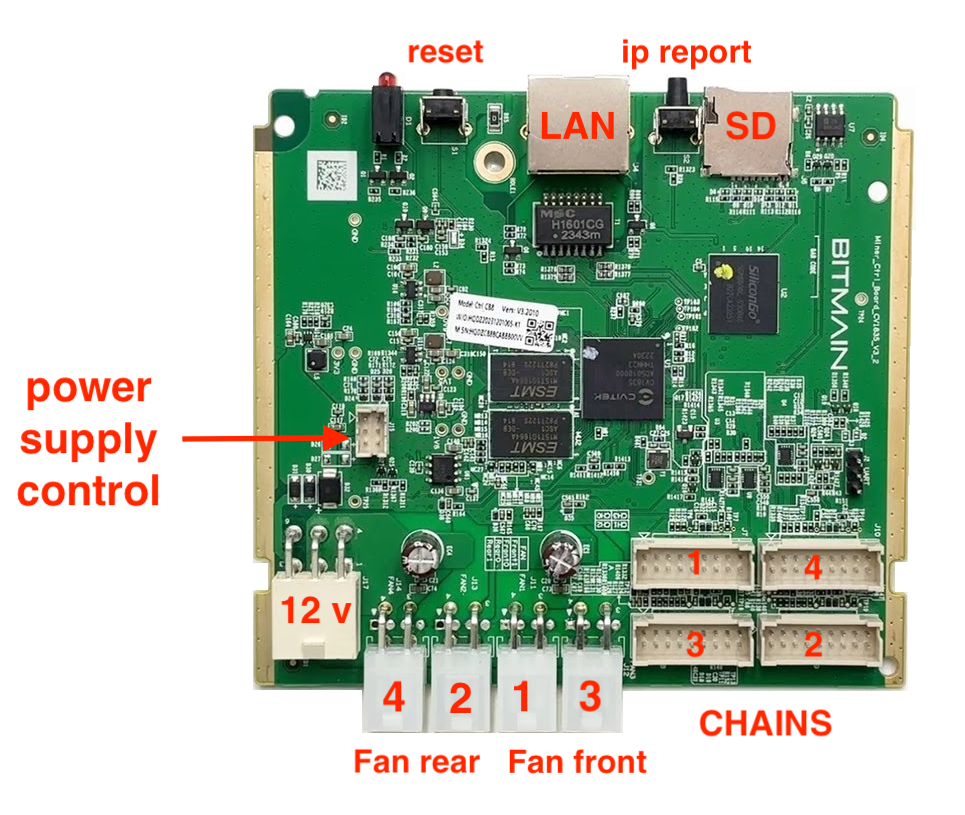

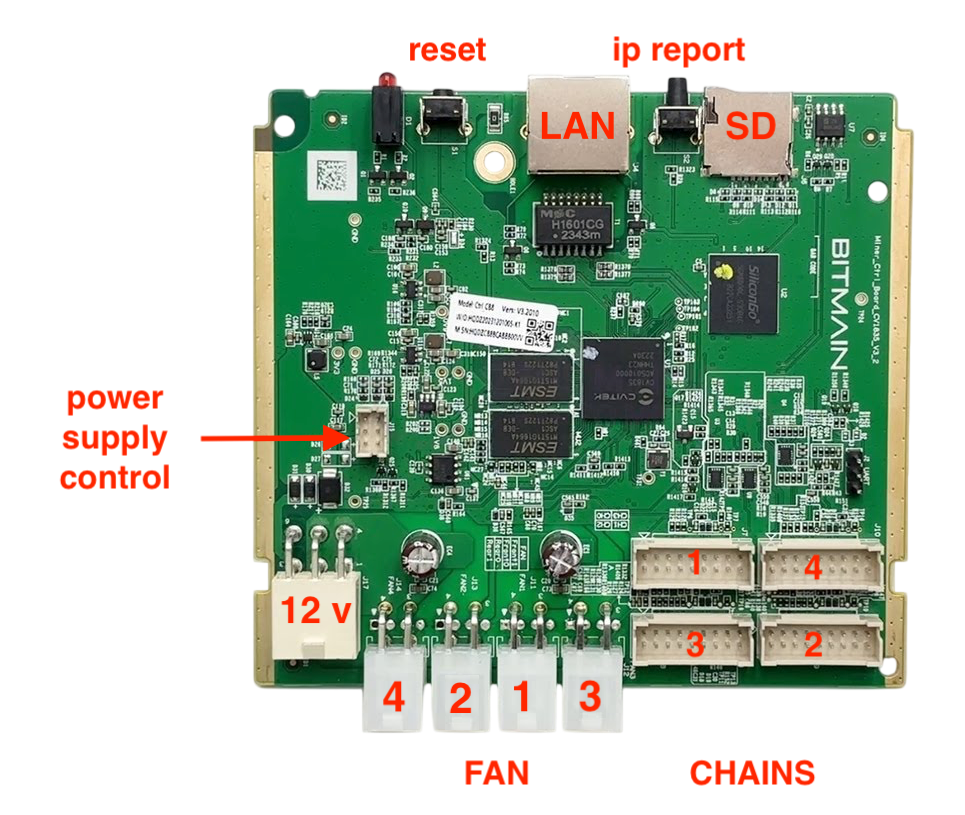

CVITEK control board - CV1835(sd slot on the outside)

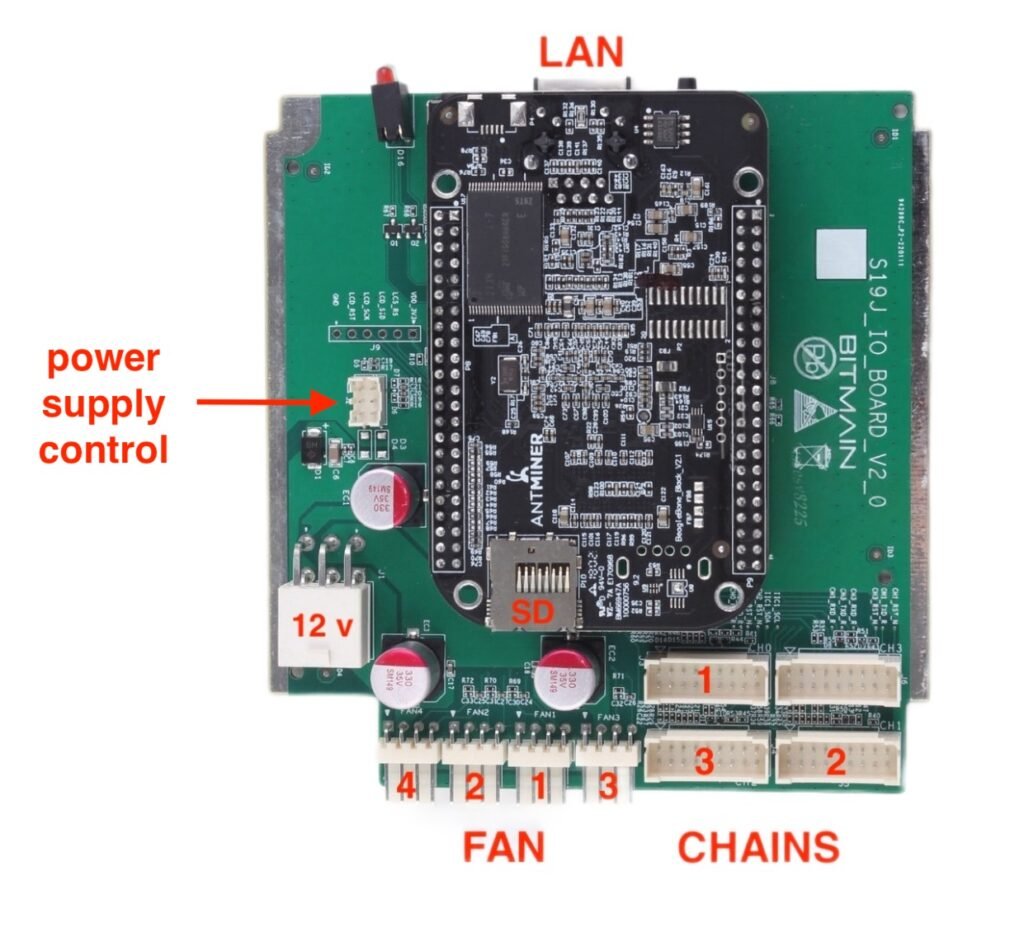

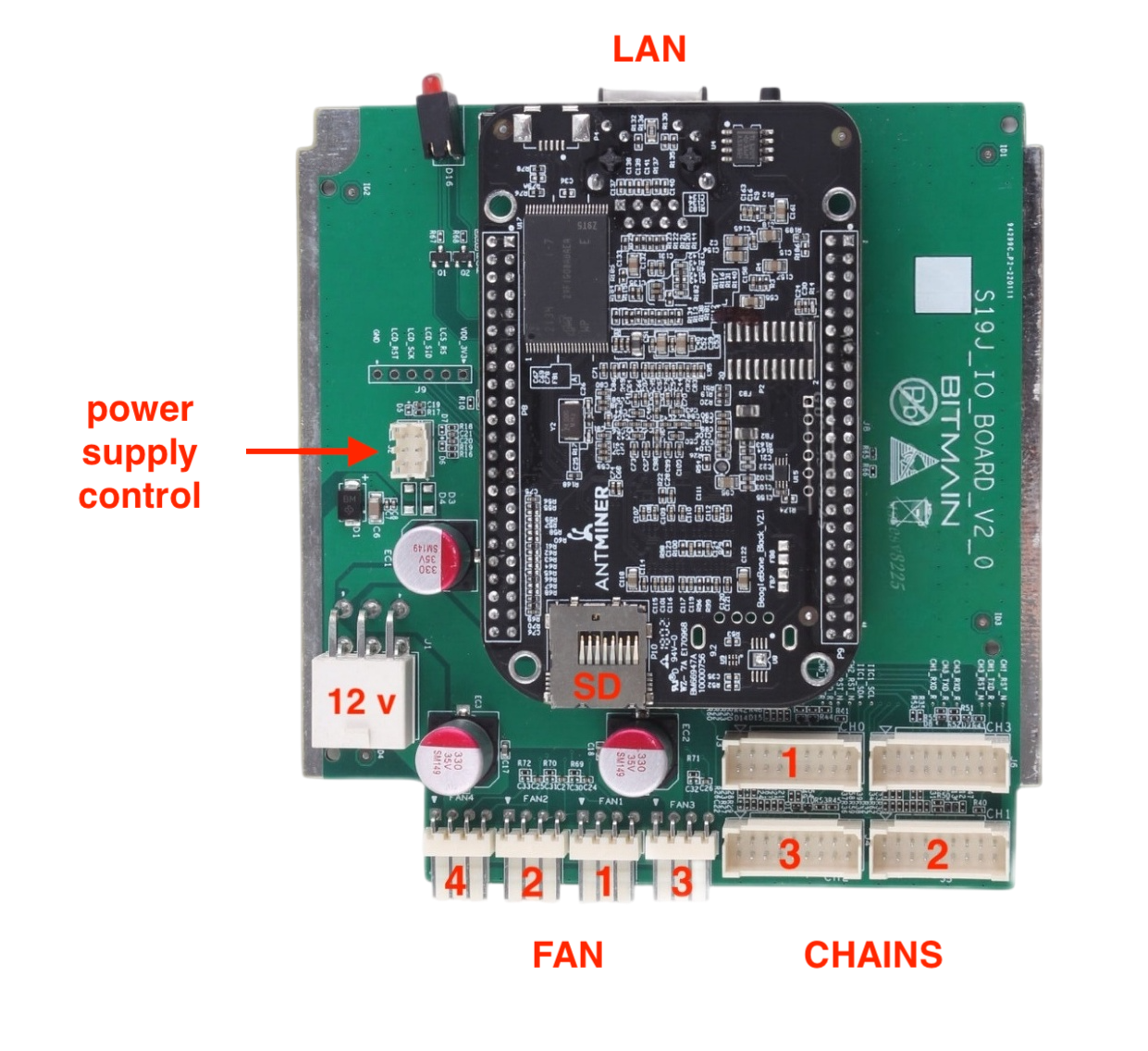

Beagle Bone Control Board – BB (consists of 2 boards, the SD slot is located inside)
